FT33 Safety Photocell Pair (TX/RX) for Automatic Gates and Doors in Egypt

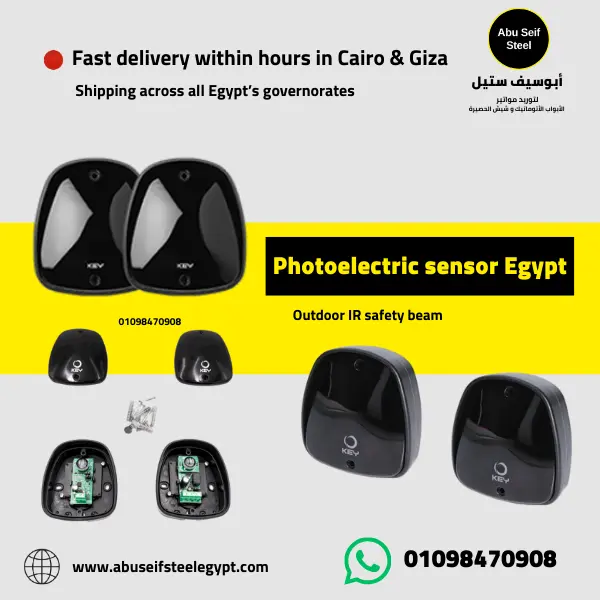

FT33 is an infrared safety beam, also searched as photocell, photo eye, and photoelectric sensor.
It detects obstacles between TX and RX and sends a safety signal to the control board safety input.
Available at Abu Seif Steel Egypt in Egypt.
Fast delivery within hours in Cairo and Giza.
Delivery to all Egypt governorates in 3 to 5 days.
25 m or 8 m range
12-30 Vac or 12-40 Vdc supply
NC or NO output
You connect FT33 to the control board photocell terminals.
Check your board voltage output and safety input type before you buy.
What FT33 does for you
FT33 creates a safety beam line between the transmitter and receiver.
When something blocks the beam, the control board stops or reverses the gate or door movement.
- Protects people, cars, and forklifts from closing impact.
- Reduces motor strain and avoids broken racks, rollers, and hinges.
- Helps commissioning and handover tests on sites.
Typical applications in Egypt
- Sliding gate motors and swing gate motors.
- Roller shutters, side motor, central motor, and tubular motor shutters.
- Industrial doors and warehouse entrances.
- Barrier gates and access control lanes.
FT33 technical specs
| Item | Value | Why it matters for buying |
|---|---|---|
| Model | FT33, photocell pair TX/RX (often sold as 900FT33) | You receive a complete safety beam set. |
| Outdoor protection | IP54 | Fits outdoor gate posts and site entrances. |
| Range | 25 m full power, 8 m low range | Low range helps when devices are close to avoid interference. |
| Power supply | 12-30 Vac or 12-40 Vdc | Match your control board accessory output. |
| Relay output | NC by default, selectable to NO | Matches different board safety inputs. |
| Relay rating | Max 1A resistive load, max 24 Vdc | Matches common safety input circuits on automation boards. |
| Operating temperature | -20 C to 55 C | Fits outdoor and industrial conditions. |
| Current consumption | RX 27 mA, TX 10 mA | Low load on the control board supply. |
| Special functions | Snow function, synchronization option | Improves stability, helps when you install 2 pairs. |

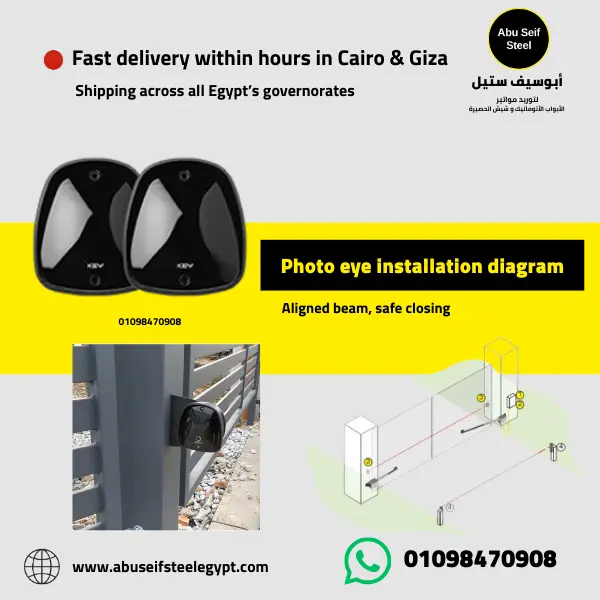

Installation notes that prevent common problems

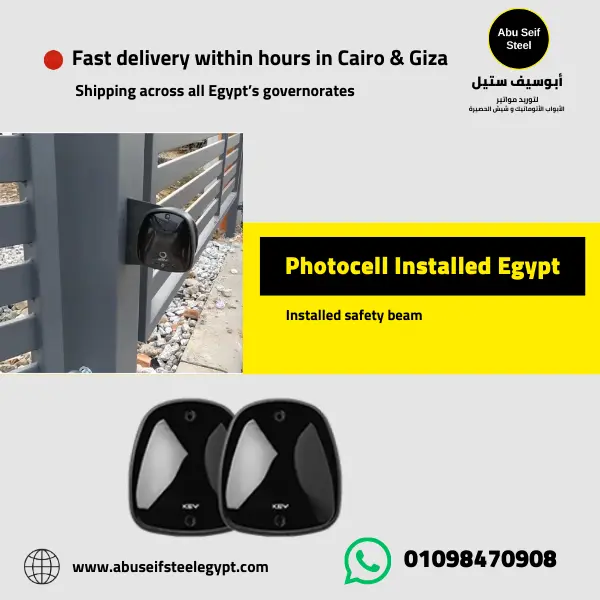

- Mount on solid posts to avoid vibration.
- Align TX and RX until the receiver indicator stays stable.
- Use low range when photocells are close and interference appears.
- Use synchronization when you install 2 pairs on the same opening.
Fast wiring check before you buy
Send your control board model on WhatsApp.
You get the correct terminals for NC or NO and the right supply voltage.
FT33 photo gallery
Questions customers ask before buying FT33
Will FT33 work with 24V, 220V, and 3-phase gate motors?
FT33 connects to the control board safety input, not directly to the motor.
Your control board must provide 12-30 Vac or 12-40 Vdc for the photocell and must have photocell safety terminals.
What is the working distance?
FT33 supports 25 m in full power mode.
Use low range 8 m when devices are close to reduce interference.

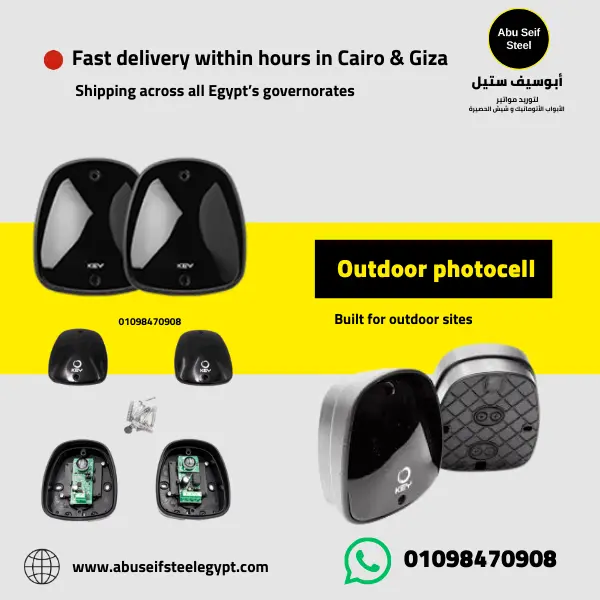

Is it suitable for outdoor installation on gate pillars?
Yes. IP54 protection fits typical outdoor gate installations in Egypt.
Use solid mounting and correct alignment.
Does it help in heavy rain?
FT33 includes a Snow function.
It adapts response time when false darkening happens due to weather.
Can I install two pairs on the same gate without interference?
Yes. Synchronization helps two pairs work without reciprocal interference.
Share your board voltage so we confirm the right setup.
NC or NO output, which one should I use?
FT33 ships with NC output by default.
Many boards prefer NC for fail safe behavior if a wire breaks.
Switch to NO only when your board requires it.
What comes in the box?

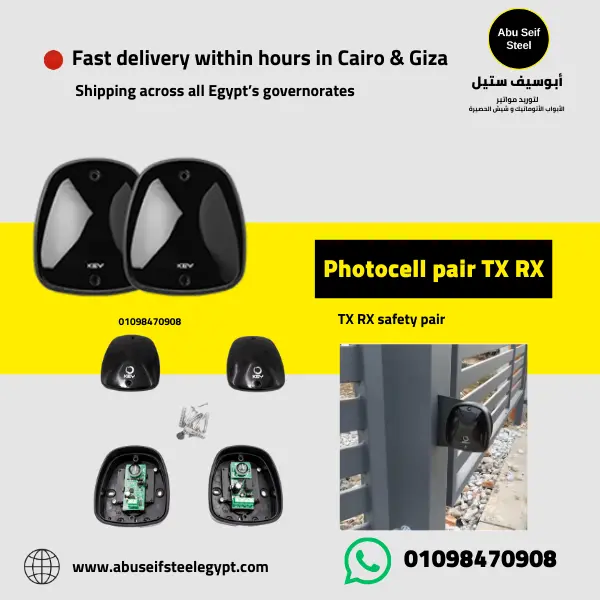

One transmitter and one receiver for one safety beam line.
Mount it on posts or install it in prepared housings.
How do I confirm alignment during installation?
Align TX and RX until the receiver indicator stays stable.
Bad alignment causes false stops and missed obstacles.
Is it available in Egypt and how fast is delivery?
Available at Abu Seif Steel Egypt.
Delivery within hours in Cairo and Giza.
Delivery to all Egypt governorates in 3 to 5 days.
Order FT33 from Abu Seif Steel Egypt
Send your control board model and application.
You get the right wiring notes and the correct NC or NO setup.
